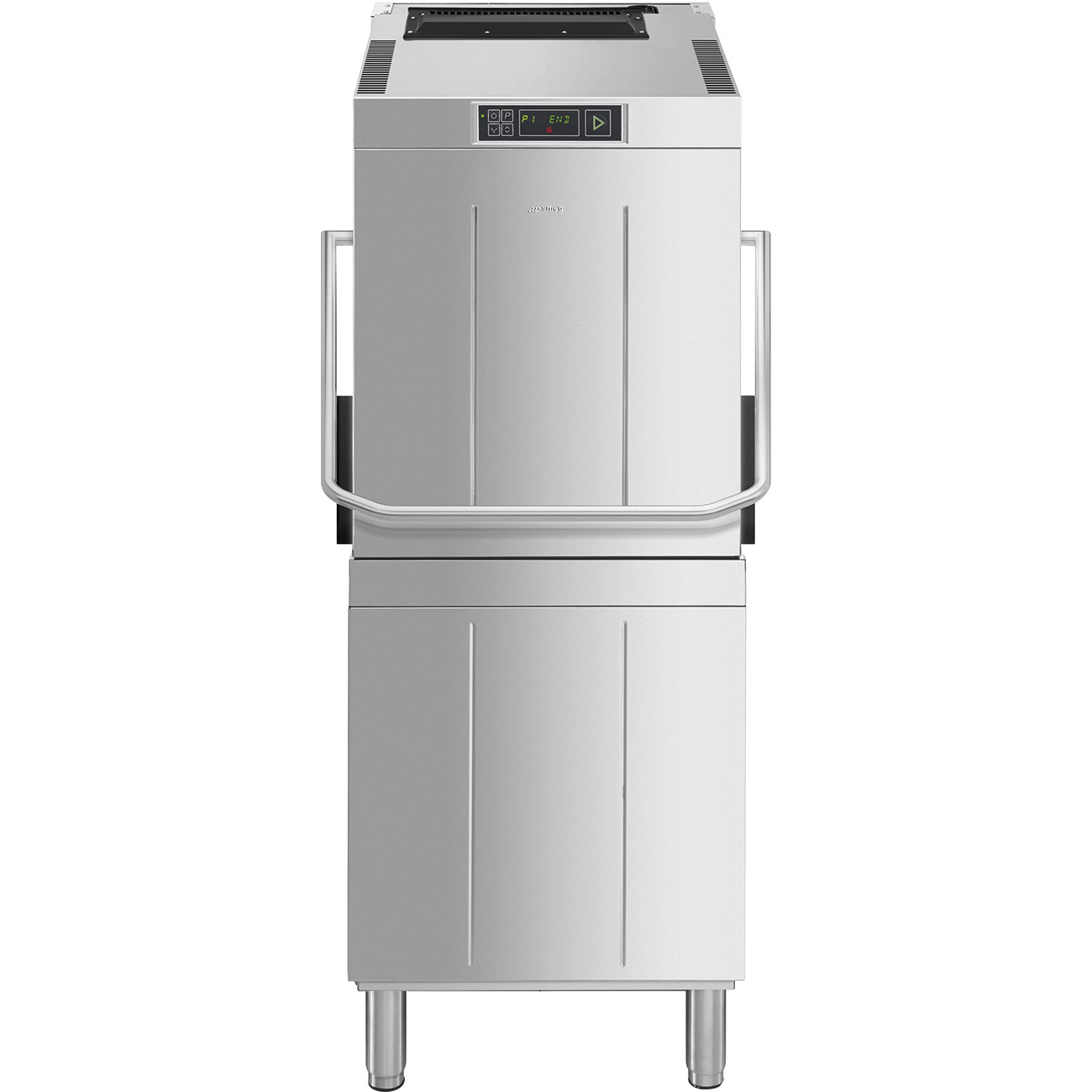

SMEG SPH515HAU Easyline fully insulated passthrough dishwasher with SHR+ - Steam Heat Recovery 9.7 kW Three phase (6.7 kW optional) - 500x500 basket Electronic control- 3 cycles
Warranty: 2 Years Parts & Labour
Ex.GST
SMEG SPH515HAU Easyline fully insulated passthrough dishwasher with SHR+ - Steam Heat Recovery 9.7 kW Three phase (6.7 kW optional) - 500x500 basket Electronic control- 3 cycles is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Easyline Hood-Type Dishwasher — SHR+ Comfort, Double-Skin Efficiency
Built for intensive use, this hood-type dishwasher delivers outstanding results shift after shift. The SHR+ steam heat recovery system removes 100% of rinse-phase steam to improve air quality and reclaim energy—cutting consumption by up to 25% and removing the need for external extraction. A patented light-action hood lift reduces effort to just 2.5 kg, while HTR high-temperature rinse, soft-start protection for glassware, and a hygienic drain-and-renew cycle ensure uniformly spotless ware. A double-skin hood boosts thermal efficiency and keeps noise down for a calmer workspace.
- SHR+ steam heat recovery: Eliminates rinse steam, improves comfort, and recovers energy for daily savings.
- 5-stage filtration: Progressive system removes coarse/fine debris, adds pre-filtration, and protects wash/drain pumps; presence sensor ensures correct positioning.
- Patented hood lift: Ergonomic handle with ultra-light 2.5 kg opening/closing effort.
- HTR System: Atmospheric boiler + Thermostop maintain a constant sanitising rinse for fast drying and uniform results.
- Soft-start wash: Gentle pump ramp-up protects delicate stemware without sacrificing cleaning power.
- Drain pump with partial water exchange: Automatically renews the dirtiest water each cycle for superior hygiene.
- Double-skin hood: Minimises heat dispersion and dampens sound for lower energy use and quieter operation.
- Eco electronic interface: Soft-touch controls with real-time tank/boiler temperatures and diagnostics.
- Moulded, deep-drawn tank: Smooth, edge-free flow path for better coverage and easier clean-down.
Specifications
General
- Family: Dishwasher
- Type: Hood-type
- Crockery: Crockery; Glasses; Cutlery; GN 1/1 trays
- Subfamily: Hoodtype
- Basket dimensions: 500 × 500 mm
- Rinse pump: HTR system
- Wash pump: Standard
- SHR system: Yes (SHR+)
- Series: Easyline
- LED colour: Green
- EAN: 8017709343439
- Industries: Bars/Cafés/Bistros/Wine bars/Pubs; Hotels; Restaurants/Catering; Bakeries/Pastry shops; Butcher/Delicatessen; Food Industries; Care facilities; Commercial food services; Grocery/Food retail
Programs & Performance
- Programs: 6 automatic; 1 fully programmable; Self-cleaning programs
- Program table: Easyline hoodtype
- Options: Extra rinse; Clean water cycle
- Max baskets/hour: 60
- Max dishes/hour: 1,080
- Max glasses/hour: 2,160
- Noise: LpA 59.9 dBA
- Usable load height: 470 mm
Water & Temperatures
- Wash temperature: 58 °C
- Rinse temperature: 87 °C
- Water per cycle: 3.2 L (minimum/typical)
- Water inlet: 8 °C; pressure 100–1000 kPa (max inlet 60 °C)
- Max water hardness: 12 °f / 7 °dH
- Drain max height: 1000 mm
- Tank capacity: 14 L; Boiler: Atmospheric, 10 L
Electrical
- Default connection: 400 V 3N~ / 16 A / 9.7 kW / 50 Hz
- Electrical options: 230 V~ / 16 A / 3.7 kW / 50 Hz; 230 V~ / 26 A / 9.7 kW / 50 Hz; 230 V~ / 30 A / 6.7 kW / 50 Hz
- Tank heating element: 2,200 W
- Boiler heating element: 9,000 W
- Wash pump power: 700 W
- Total connected load: 9,700 W
Interface
- Display: 4-digit
- Buttons: 5 (includes On/Off)
- Manual diagnostic: Yes
Construction
- Tank: Deep drawn; moulded
- Hood: Double-skin
- Materials: AISI 304 stainless steel tank & filters; pre-painted back panel
- Upper washing system: Stainless wash arm + split rinse arm
- Lower washing system: Stainless wash arm + split rinse arm
- Hood elevation: Manual (patented lift)
- Filter system: 5-stages
- Protection class: IPX4
- Adjustable feet: Yes
Dimensions & Logistics
- Product (W × D × H): 620 × 831 × 1530 mm
- Net weight: 131.0 kg
- Packed (W × D × H): 770 × 900 × 1700 mm
- Gross weight: 142.0 kg
- Packaging: Carton on pallet — Paper 5.892 kg; Polystyrene 0.688 kg; Wood 9.450 kg; Plastic 0.157 kg
Equipment & Systems
- Drain pump: Yes (partial water renewal)
- Peristaltic detergent dispenser: Yes, electronic control
- Peristaltic rinse-aid dispenser: Yes, electronic control
- Chemicals dosing unit: g/L (default)
- Auto daily switch-on: Option (default OFF)
- Stand-by system: Yes
- Rinse boiler Thermostop: Yes (default)
- Wash tank Thermostop: Yes
- Cycle counter: Yes
- Break tank: Yes

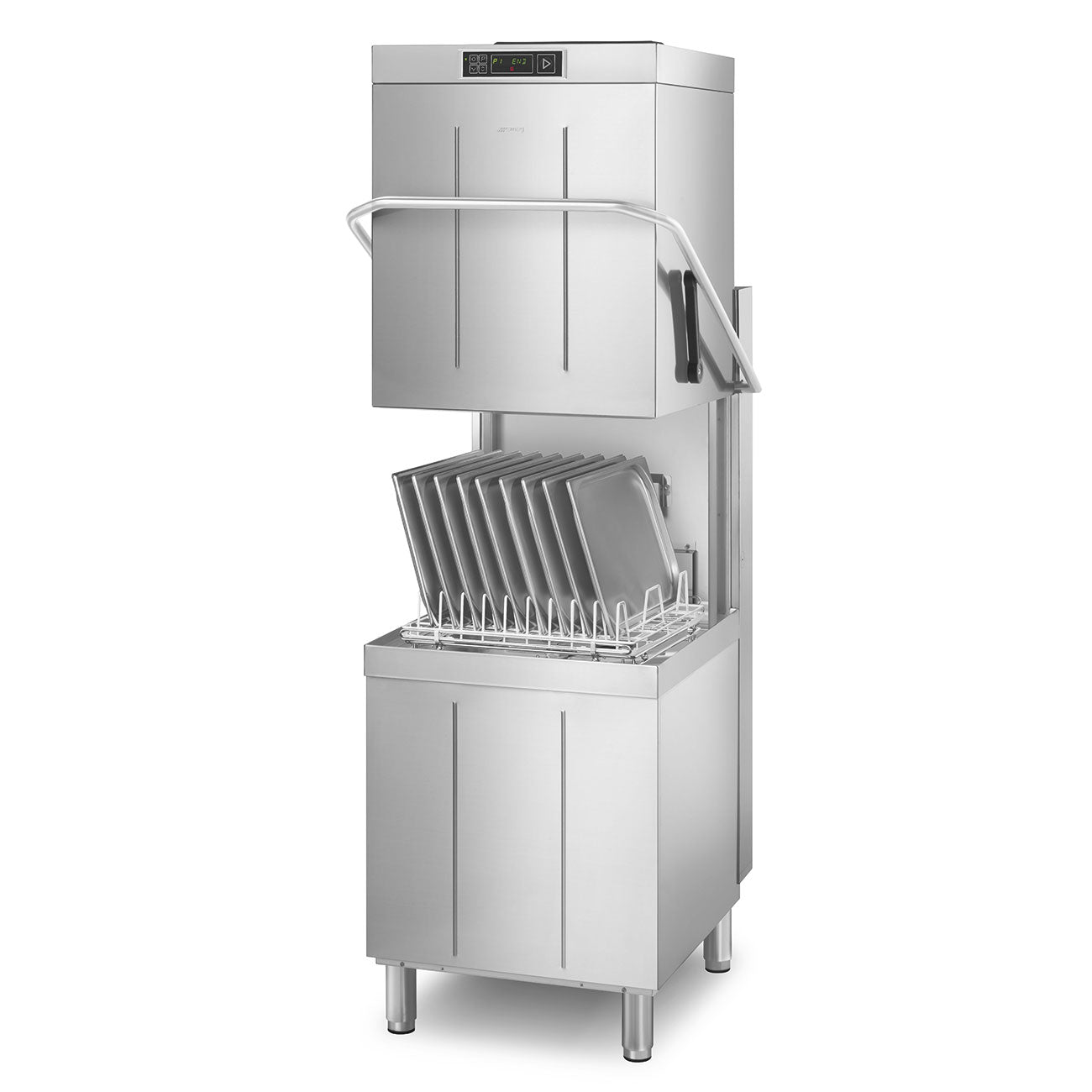

- Tray washing: Yes — 7 × GN 1/1 (530 × 325 mm)
