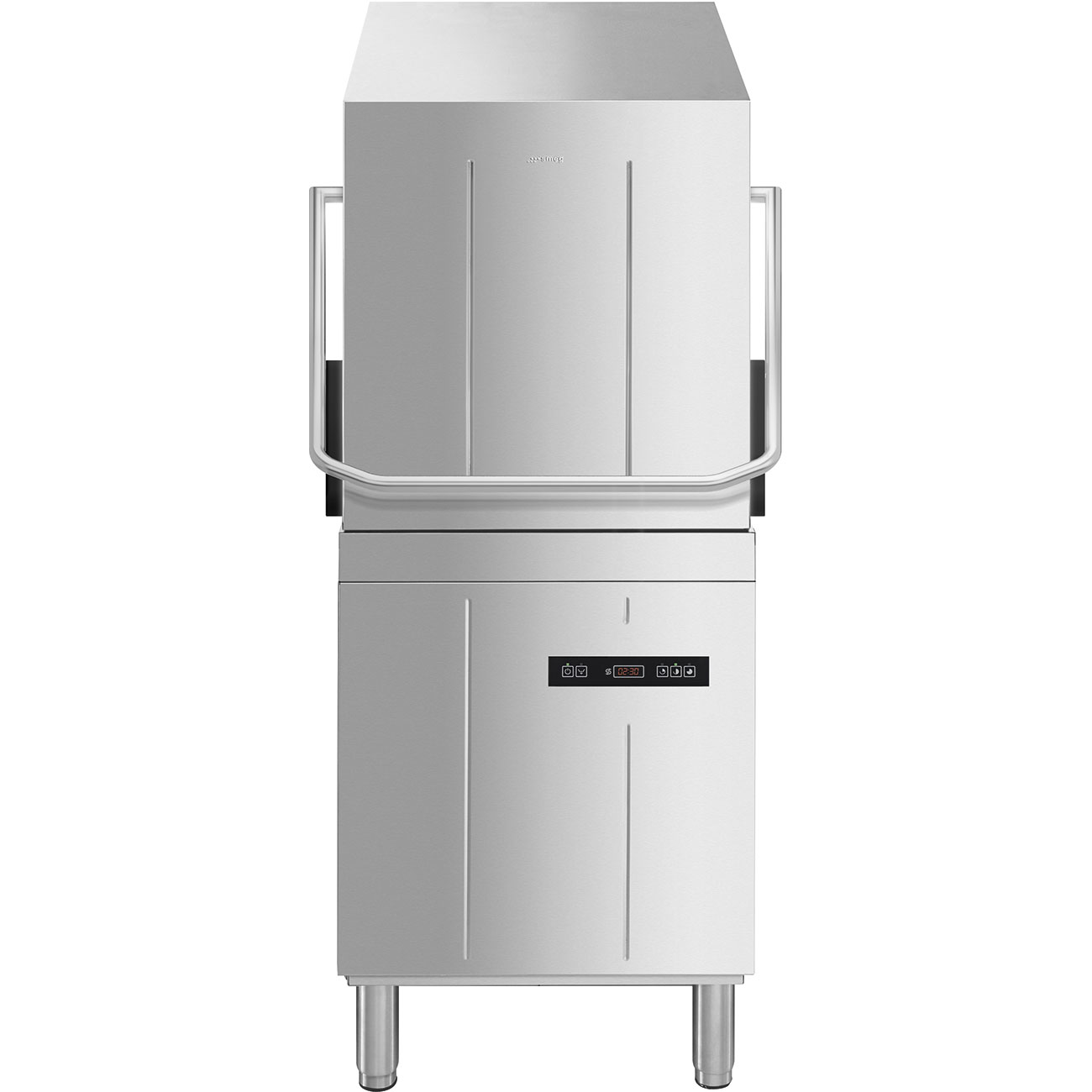

SMEG SPH505LAU15 Ecoline passthrough dishwasher - 15 Amp - 500x500 basket. Electronic control- 3 cycles

SKU: SPH505LAU15

Warranty: 2 Years Parts & Labour

$7,599.20 $9,499.00
Ex.GST

Description

Ecoline Hood-Type Dishwasher — 230 V Single-Phase Power, Pro Results

Engineered for bars, cafés, hotels, and catering, this hood-type dishwasher delivers reliable hygiene and easy operation on a compact footprint. A patented light-action hood lift reduces effort to just 2.5 kg, while the HTR high-temperature rinse guarantees consistent sanitisation and quick drying. The 5-stage filtration keeps wash water cleaner for longer, and a deep-drawn, moulded tank streamlines flow for spotless results. Single-skin hood construction supports thermal efficiency and a comfortable acoustic profile.

  • 5-stage filtration system: Multi-stage filtering removes coarse and fine debris, adds pre-filtration to protect tank water, and safeguards wash/drain pumps; presence sensor ensures correct filter positioning.
  • Patented hood lift: Ergonomic handle with ultra-light 2.5 kg opening/closing effort for all-day ease.
  • HTR System: Atmospheric boiler + Thermostop maintain a constant, sanitising rinse for uniform results and faster drying.
  • Soft-start system: Gentle pump ramp-up protects delicate glassware without compromising cleaning power.
  • Drain pump with partial water exchange: Automatically renews the dirtiest water every cycle for superior hygiene.
  • Single-skin hood: Reduces heat dispersion while helping to lower noise in the workspace.
  • Eco electronic interface: Soft-touch buttons with real-time tank/boiler temperatures, cycle progress and end-of-cycle alerts.
  • Moulded tank & basket guides: Smooth, edge-free design improves water circulation, cleaning performance, and daily clean-down.

Specifications

General

  • Family: Dishwasher
  • Type: Hood-type
  • Crockery: Crockery; Glasses; Cutlery; GN 1/1 trays
  • Subfamily: Hood-type
  • Basket dimensions: 500 × 500 mm
  • Rinse pump: HTR system
  • Wash pump: Standard
  • Series: Ecoline
  • LED colour: Green
  • EAN: 8017709339777
  • Industries: Bars/Cafés/Bistros/Wine bars/Pubs; Hotels; Restaurants/Catering; Bakeries/Pastry; Butcher/Delicatessen; Food industries; Care facilities; Commercial food services; Grocery/Food retail

Programs & Performance

  • Programs: 3 automatic
  • Program table: Electronic Ecoline hood-type
  • Options: Extra rinse; Clean water cycle
  • Max baskets/hour: 40
  • Max dishes/hour: 720
  • Max glasses/hour: 1,440
  • Usable load height: 470 mm
  • Noise: LpA 63.1 dBA

Water & Temperatures

  • Wash temperature: 58 °C
  • Rinse temperature: 87 °C
  • Water per cycle: 3.2 L (minimum/typical)
  • Water inlet: 8 °C; pressure 100–1000 kPa (max inlet 60 °C)
  • Max water hardness: 12 °f / 7 °dH
  • Max height with hood open: 2138 mm

Electrical

  • Power connection: 230 V~ / 15 A / 3.4 kW / 50 Hz
  • Plug: Australia (I)
  • Tank heating element: 1,400 W
  • Boiler heating element: 2,600 W
  • Wash pump power: 700 W
  • Total connected load: 3,400 W
  • Electrical option: 230 V~ / 15 A / 3.4 kW / 50 Hz

Interface

  • Panel control: Eco electronic
  • Display: 4-digit
  • Buttons: 5 (includes On/Off)
  • Alerts: Cycle progress; End-cycle
  • Manual diagnostic: Yes

Construction

  • Tank: Deep-drawn
  • Hood: Single-skin
  • Tank material: Stainless steel AISI 304
  • Tank filter: Stainless steel
  • Back panel: Pre-painted
  • Upper washing system: Stainless wash arm + split rinse arm
  • Lower washing system: Stainless wash arm + split rinse arm
  • Hood elevation: Manual (patented lift)
  • Filter system: 5-stage
  • Tank capacity: 14 L
  • Boiler: Atmospheric; 10 L
  • Adjustable feet: Yes
  • Drain max height: 1000 mm

Dimensions & Logistics

  • Product (W × D × H): 634 × 831 × 1523 mm
  • Net weight: 109.0 kg
  • Packed (W × D × H): 700 × 900 × 1700 mm
  • Gross weight: 128.0 kg
  • Packaging: Carton on pallet — Paper 5.504 kg; Polystyrene 0.688 kg; Wood 9.450 kg; Plastic 0.070 kg

Equipment & Systems

  • Drain pump: Yes (partial water renewal)
  • Peristaltic detergent dispenser: Yes, electronic control
  • Peristaltic rinse-aid dispenser: Yes, electronic control
  • Chemicals dosing unit: g/L (default)
  • Auto daily switch-on: Option (default OFF)
  • Stand-by system: Yes
  • Rinse boiler Thermostop: Yes (default)
  • Wash tank Thermostop: Yes
  • Cycle counter: Yes
  • Break tank: Yes
  • Tray washing: Yes — 7 × GN 1/1 (530 × 325 mm)

Technical drawing Technical drawing 2 Product sheet
