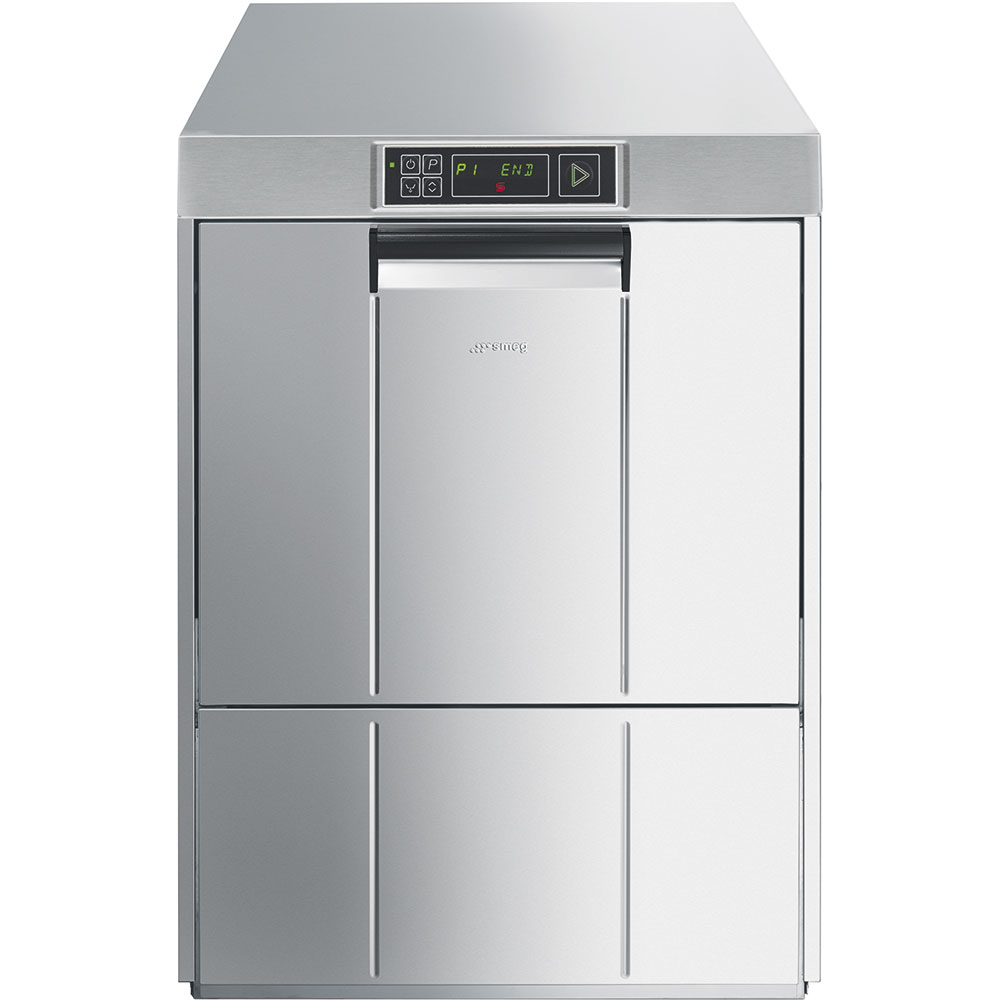

SMEG SPD515AU easyLINE fully insulated underbench dishwasher - Three phase (15 Amp optional) 500x500 basket Electronic control- 7 cycles
Warranty: 2 Years Parts & Labour
Ex.GST
SMEG SPD515AU easyLINE fully insulated underbench dishwasher - Three phase (15 Amp optional) 500x500 basket Electronic control- 7 cycles is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Ecoline Undercounter Dishwasher — Compact Power, Quiet Confidence
Serve pristine crockery, glassware, cutlery, and GN 1/1 trays with a compact undercounter dishwasher engineered for busy service. A counterbalanced door makes loading effortless, while the HTR (High Temperature Rinse) system with an atmospheric boiler and Thermostop ensures a consistent, sanitising rinse. A moulded tank and basket guides optimise wash flow, the 5-stage filtration system keeps water cleaner for longer, and the integral double-skin body boosts thermal efficiency and acoustic comfort.
- Balanced door: Smooth, counterbalanced opening/closing with a handy half-open stop to encourage natural end-of-day drying.
- 5-stage filtration system: Multi-stage filtering removes coarse and fine debris, adds pre-filtration to protect the tank water, and finally safeguards wash/drain pumps; a presence sensor warns if filters are mis-positioned.
- HTR System: Atmospheric boiler + Thermostop maintain a constant 85 °C rinse at steady pressure for uniform, effective cleaning and fast drying.
- Integral double skin: Full double-wall cabinet reduces heat loss and noise for faster heat-up and a quieter workspace.
- Drain pump with partial water exchange: Automatically removes the dirtiest water every cycle for cleaner, more hygienic results.
- Moulded tank & guides: Smooth, edge-free tank and rack guides improve water circulation, hygiene, and daily clean-down.
Specifications
General
- Family: Dishwasher
- Type: Undercounter dishwasher
- Crockery: Crockery; Glasses; Cutlery; GN 1/1 trays
- Subfamily: Undercounter
- Basket dimensions: 500 × 500 mm
- Rinse pump: HTR system
- Wash pump: Standard
- Power connection: 400 V 3N~ / 12 A / 7.3 kW / 50 Hz
- EAN: 8017709342241
- Industries: Bars/Cafés/Bistros/Wine bars/Pubs; Hotels; Restaurants/Catering; Bakeries/Pastry; Butcher/Delicatessen; Care facilities; Commercial food services; Grocery/Food retail
- LED colour: Green
Programs & Performance
- Programs: 7 automatic; Self-cleaning; Cold-water rinse program
- Program table: Easyline dishwasher and traywasher 500
- Options: Extra rinse; Clean water cycle
- Max baskets/hour: 60
- Max dishes/hour: 1,080
- Max glasses/hour: 2,160
- Noise: LpA 54.5 dBA
Water & Temperatures
- Wash temperature: 60 °C
- Rinse temperature: 24 °C – 85 °C
- Minimum/typical water per cycle: 3.2 L
- Water inlet: Cold 8–15 °C (max inlet 60 °C)
- Max water hardness: 12 °f / 7 °dH
- Usable load height: 400 mm
- Depth with door open: 1,020 mm
- Drain max height: 600 mm
Electrical
- Tank heating element: 2,000 W
- Boiler heating element: 6,100 W
- Wash pump power: 700 W
- Total connected load (listed): 7,300 W
- Electrical connection options: 230 V 3~ / 19 A / 7.3 kW / 50 Hz; 230 V 3~ / 19 A / 6.8 kW / 50 Hz; 230 V~ / 15 A / 3.4 kW / 50 Hz; 230 V~ / 17 A / 3.9 kW / 50 Hz; 230 V~ / 20 A / 4.5 kW / 50 Hz; 230 V~ / 22 A / 5.0 kW / 50 Hz; 400 V 3N~ / 12 A / 6.8 kW / 50 Hz
Interface
- Display: 8-digit
- Buttons: 5
- On/Off: Yes
- Alerts: Rinse-aid missing; Detergent missing; Cycle progress; End-cycle
- Manual diagnostic: Yes
Construction
- Tank: Deep-drawn
- Body: Double wall (integral)
- Tank material: AISI 304 stainless steel
- Tank filter: Stainless steel
- Back panel: Galvanized
- Upper system: Stainless wash arm + split rinse arm
- Lower system: Stainless wash arm + split rinse arm
- Balanced door: Yes; gasket on 3 sides
- Rack guides: Embossed
- Filtration: 5-stage filter system
- Tank capacity: 11 L
- Boiler: Atmospheric; 6.5 L
- Adjustable feet: Yes
Dimensions & Logistics
- Product (W × D × H): 600 × 600 × 822 mm
- Net weight: 60.0 kg
- Packed (W × D × H): 660 × 700 × 990 mm
- Gross weight: 68.0 kg
- Packaging: Carton on pallet — Paper 3.042 kg; Polystyrene 0.665 kg; Wood 5.000 kg; Plastic 0.080 kg
Equipment & Systems
- Drain pump: Yes (partial water renewal)
- Peristaltic detergent dispenser: Yes, electronic control
- Peristaltic rinse-aid dispenser: Yes, electronic control
- Chemicals level probe: Optional (KITSONLIV)
- Chemicals dosing unit: g/L (default)
- Auto daily switch-on: Option (default OFF)
- Stand-by system: Yes
- Rinse boiler Thermostop: Yes (default)
- Wash tank Thermostop: Yes
- Break tank: Yes
- Partial water renewal + built-in drain pump: Yes
- Peristaltic detergent doser: Yes, manual (listed)
