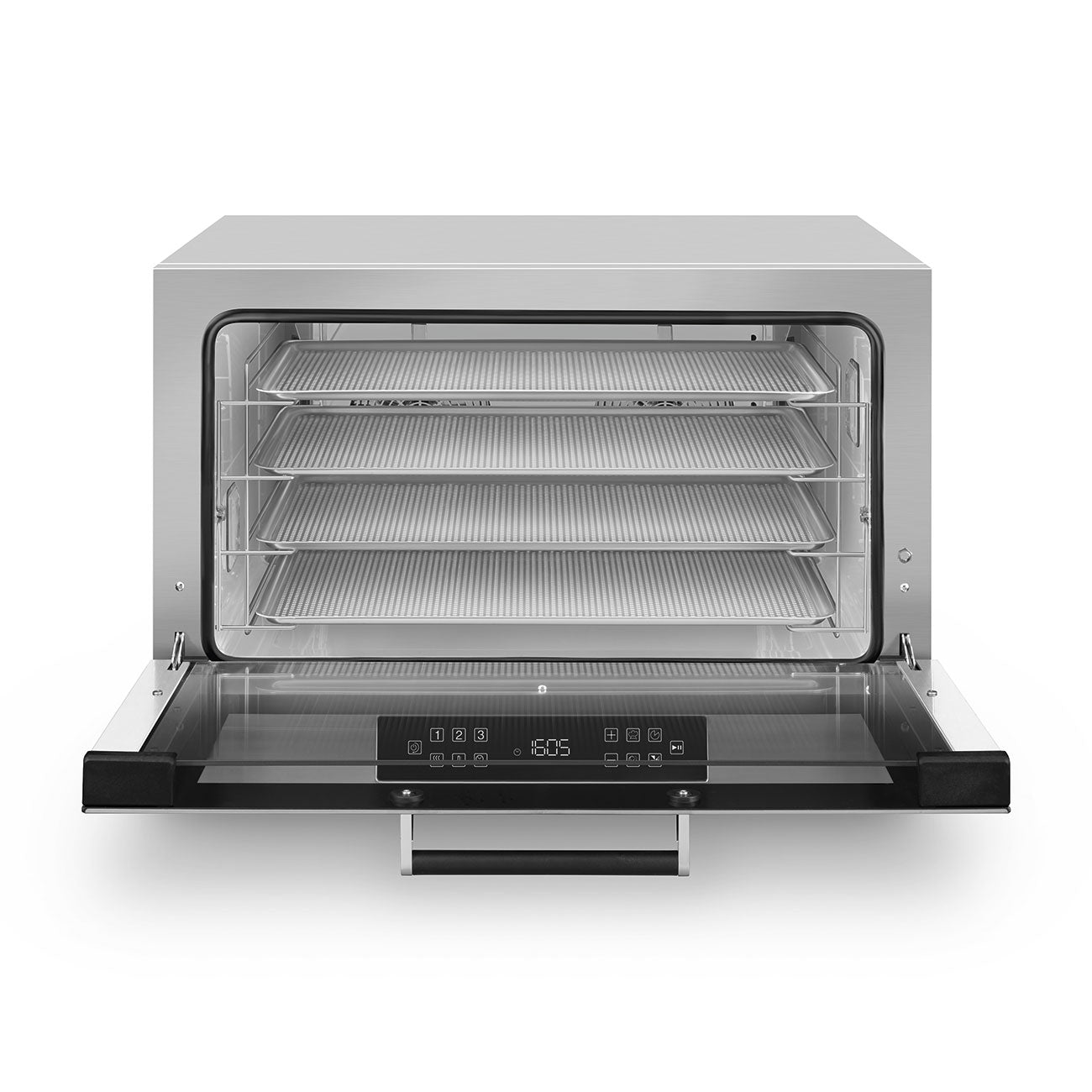

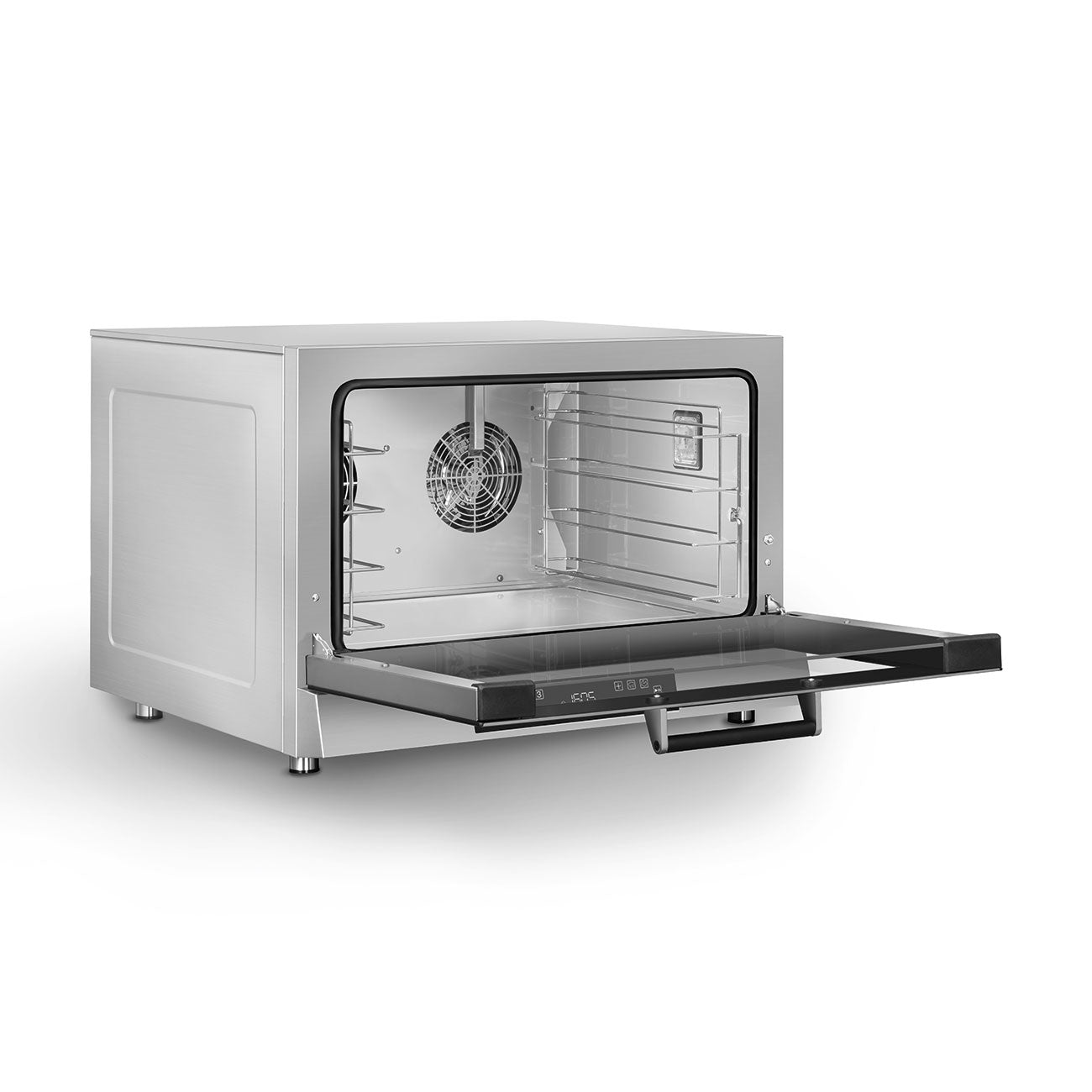

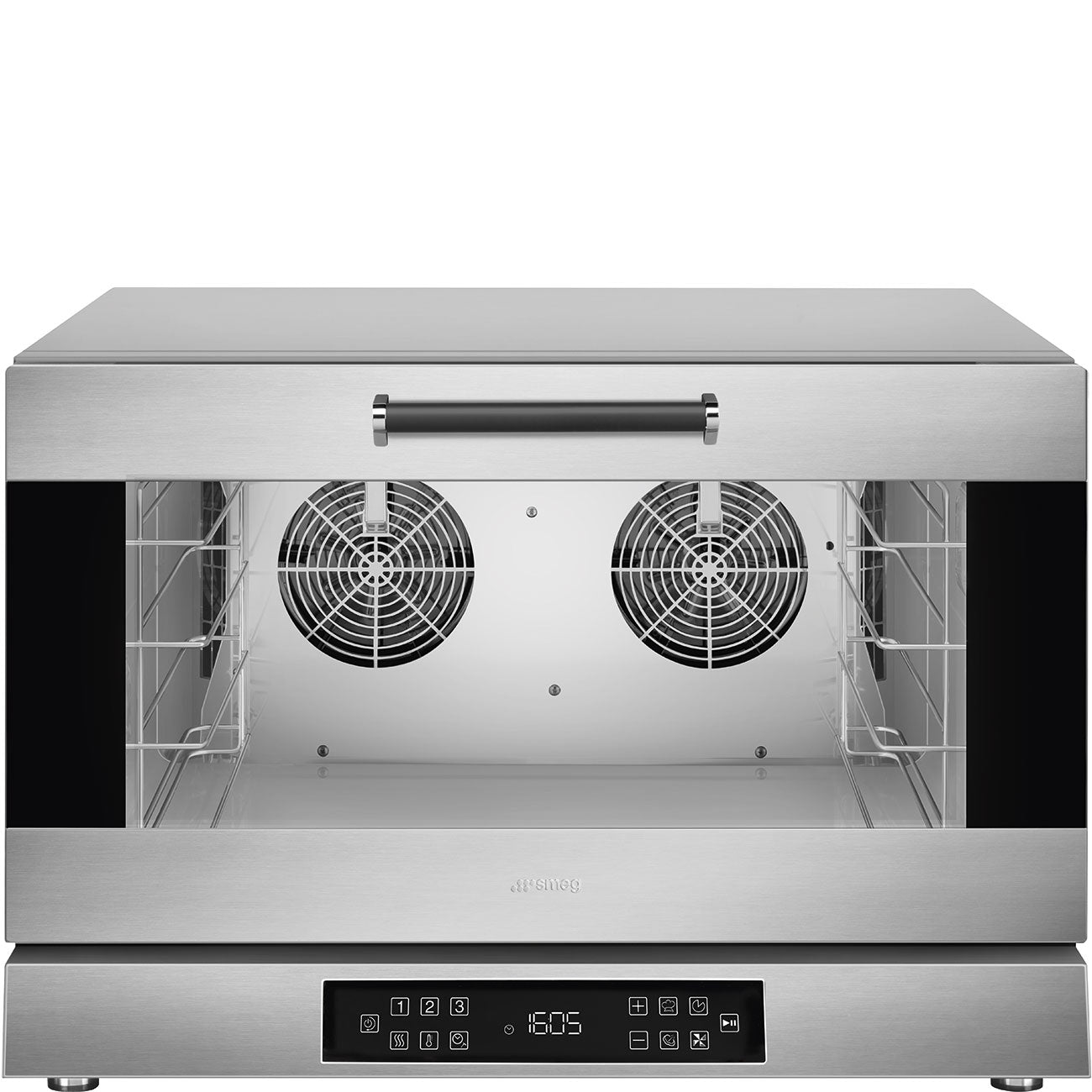

SMEG ALFA420E1HDS Humidified convection oven with side opening door - Three phase (single phase optional) Electronic controls 4 tray

SKU: ALFA420E1HDS

Warranty: 2 Years Parts & Labour

$4,399.20 $5,499.00
Ex.GST

Description

Flawless Browning with Smart LCD Touch Control

Built to deliver consistent, bakery-quality results, this convection oven combines uniform airflow, precise temperature management, and repeatable programs so every bake finishes with even colour and perfect texture. The intuitive LCD touch interface makes setup effortless, while adjustable fan speeds, humidity management, and three programmable cooking stages protect delicate products and elevate results across every tray. Clip-open glass provides quick access for fast, safe cleaning.

  • LCD Touch interface: Simple, guided adjustments for temperature, time, humidity level, and fan speed with a clear central display.
  • Two-speed fan: Tailor airflow intensity for delicate items like meringues, profiteroles, and soufflés to preserve lift and structure.
  • Humidity management: Short steam pulses promote crust development and internal softness for impeccable browning.
  • 3 cooking stages + preheat: Build multi-step recipes for precise control from gentle cook to final finish.
  • Clip-open glass: Quick, comfortable access for maintenance and cleaning.

How It Works

Humidity control uses timed steam cycles inside the chamber. Each cycle sprays water vapour for 2 seconds followed by a 15-second pause. Select from three humidity levels or use manual control to match the product.

Fan control offers two speeds to balance airflow and protection for delicate structures, ensuring even results across the cavity.

Specifications

General

  • Family: Ovens
  • Subfamily: Convection oven, 4 trays EN 600 × 400 mm or GN 1/1
  • Power supply: Electric
  • Oven type: Fan with humidification
  • Control: Electronic
  • Tray capacity: 4 × EN 600 × 400 mm, GN 1/1 (min height 20 mm)
  • Wi-Fi: Not available
  • Humidity generation: Direct in cavity
  • Adjustable feet: Yes
  • Series: Alfa
  • Colour: Stainless steel
  • Door with stainless steel stripes: Yes
  • Display type: LCD Touch
  • Digit display colour: White
  • Front panel: Yes
  • Suggested for: Bars and cafés
  • Industries: Bars, cafeterias, bistros, wine bars, pubs, hotels, restaurants, bakeries and pastry shops, butcher shops and delicatessens, catering, care facilities, commercial food services, grocery and food retail

Programs and Functions

  • HACCP data: Scheduled start H/12
  • Baking functions: Fan forced; Fan forced with humidification
  • Core probe modes: Core temperature probe baking; Core probe plus Δt
  • Adjustable fan speed: Yes
  • Recipes: 100
  • Cooking steps: 3 plus preheating
  • Preheating: Boiler 71 °C / Tank 60 °C for 50 seconds
  • Delayed start: Boiler 71 °C / Tank 60 °C for 50 seconds
  • Chimney regulation: On/Off

Technical

  • Power connection (primary): 400 V 3N~ / 10 A / 6.9 kW / 50–60 Hz
  • Other electrical connection: 230 V~ / 30 A / 6.9 kW / 50–60 Hz
  • Circular heating element: 3200 W
  • Water inlet pressure: 50–500 kPa
  • Temperature range: 30–270 °C
  • Timer: 1 minute to 99 hours plus continuous
  • Timer type: Electronic
  • End-of-cooking signal: Yes
  • Manual reset safety thermostat: Yes
  • USB port: Yes
  • Core probe Δt predisposition: Yes

Construction

  • Oven materials: Ever Clean enamel
  • Cavity material: Stainless steel
  • Cavity dimensions (L × D × H): 672 × 437 × 340 mm
  • Internal reference volume (W × D × H): 670 × 560 × 420 mm
  • Shelves: 4 positions, spacing 77 mm
  • Tray frame support: Chrome
  • Door construction: Double glass
  • Door opening: Tilting
  • Openable glass: Removable
  • Fans: 2 counter-rotating with timed direction reversal
  • Fan motor: 200 W
  • Fan speeds: 2
  • Water injection: On each fan
  • Humidification levels: 3 plus manual
  • Exhaust position: Back
  • Lighting: 2 halogen lamps
  • IPX protection: Scheduled start H/12
  • Removable deflector: Yes
  • Handle type: Smeg

Dimensions and Logistics

  • Product dimensions (W × D × H): 798 × 747 × 563 mm
  • Maximum depth with door open: 1145 mm
  • Net weight: 63 kg
  • Packed product dimensions (W × D × H): 960 × 845 × 640 mm
  • Gross weight: 71 kg
  • Reference internal volume: 670 × 560 × 420 mm
  • Type of packaging: Cardboard
  • Packaging composition: Paper and cardboard 2.761 kg; Polystyrene 0.355 kg; Wood 8.154 kg; Plastic 0.661 kg

Options and Solutions

  • Solutions: K4610X

Technical drawing Technical drawing 2 Product sheet 3D file
