$2,099.80 Off

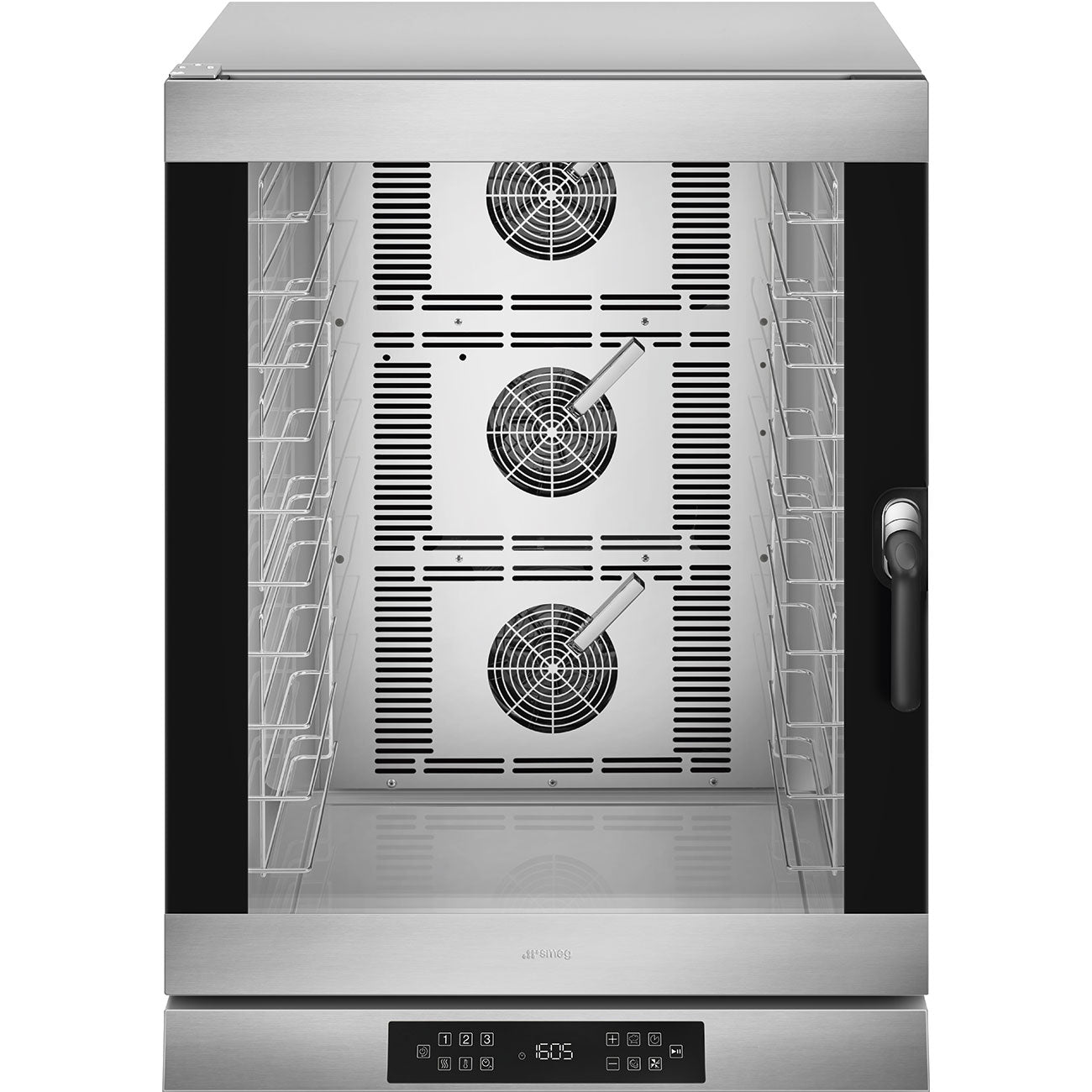

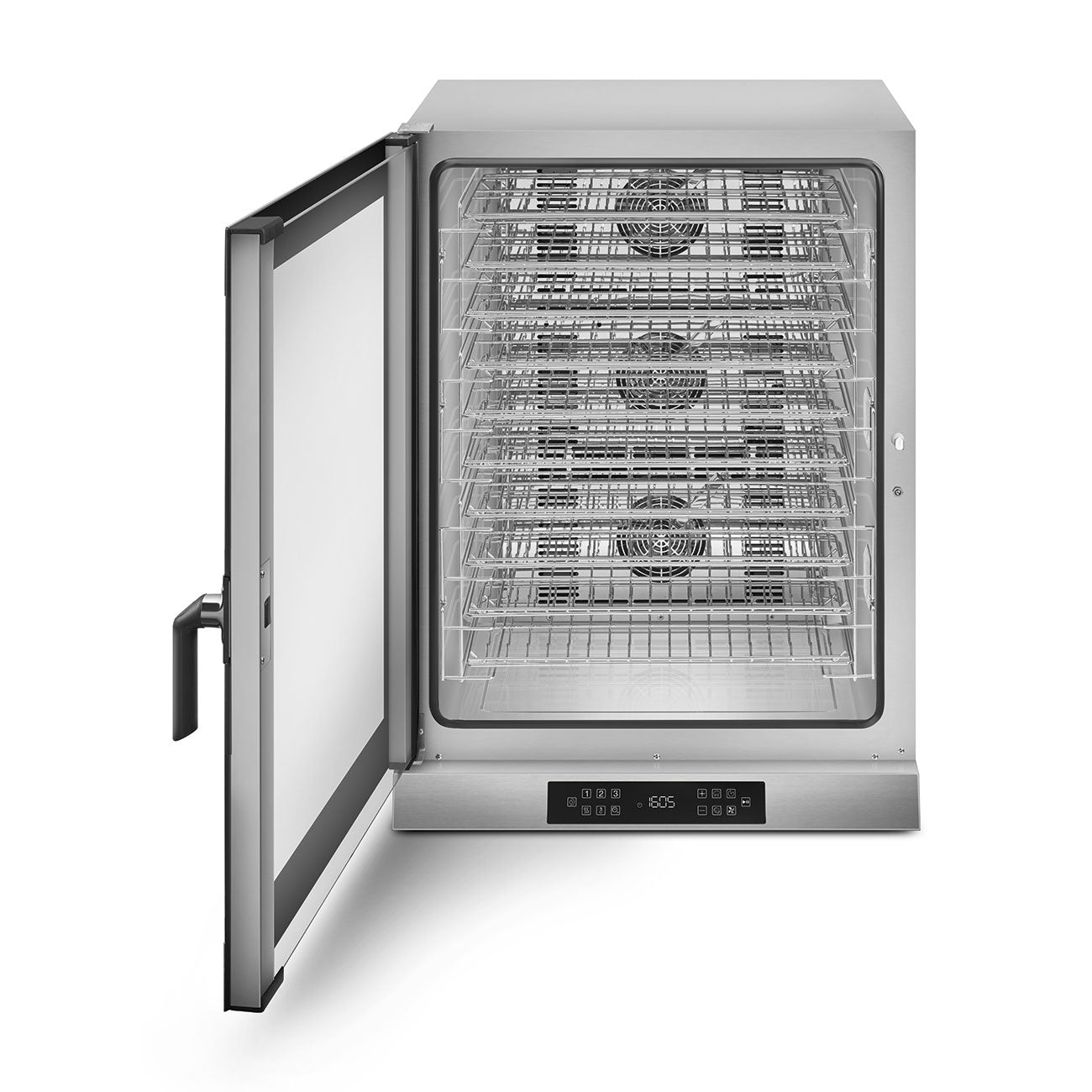

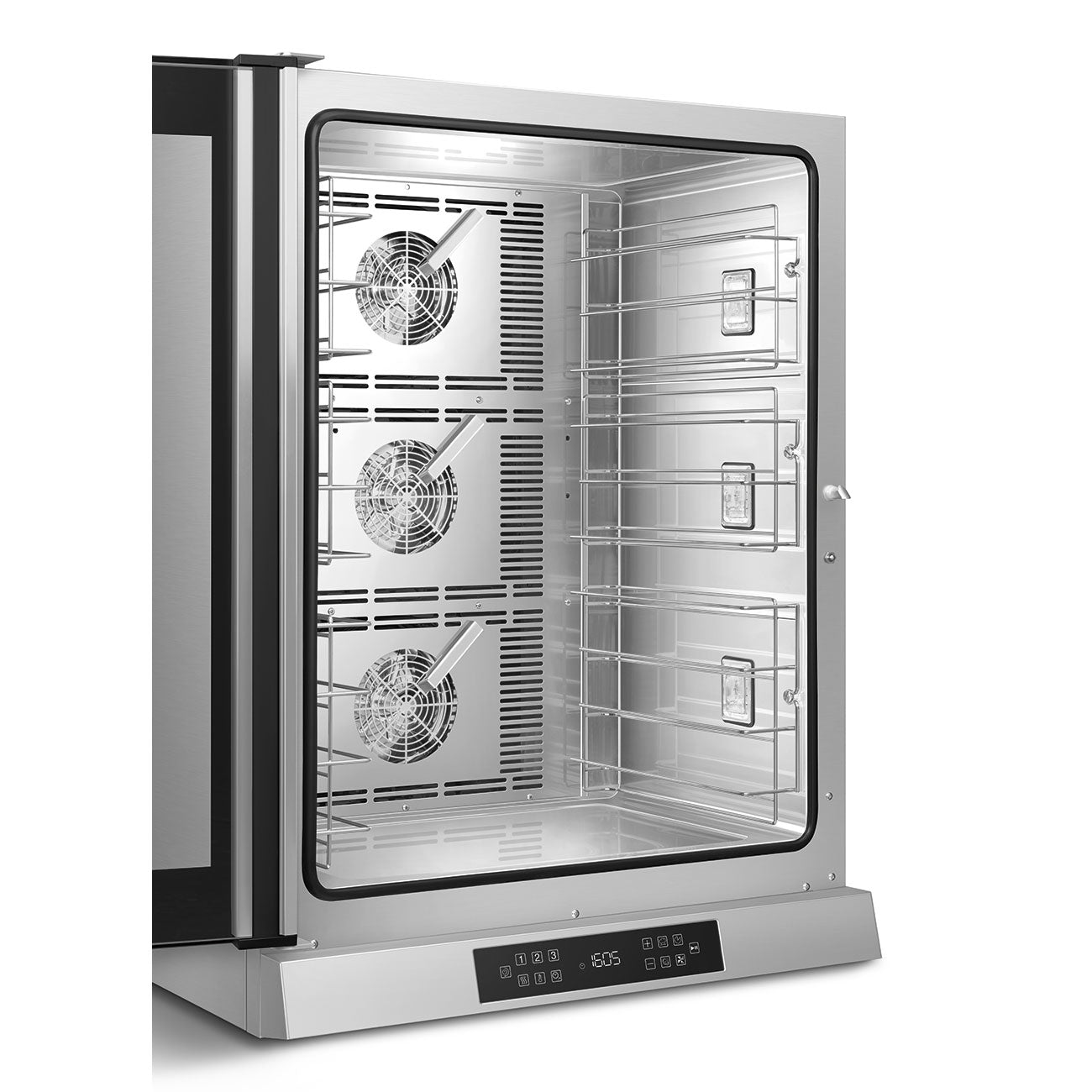

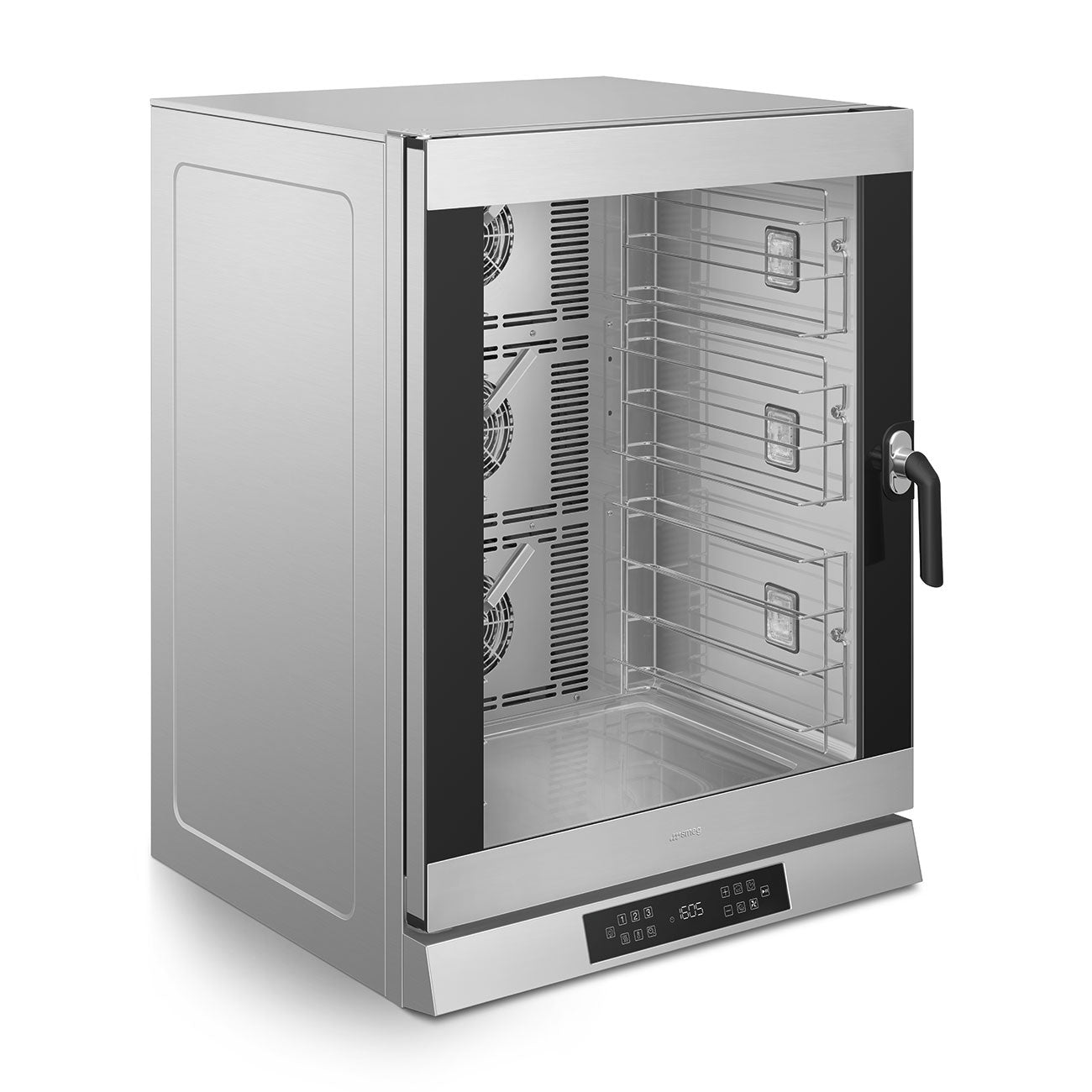

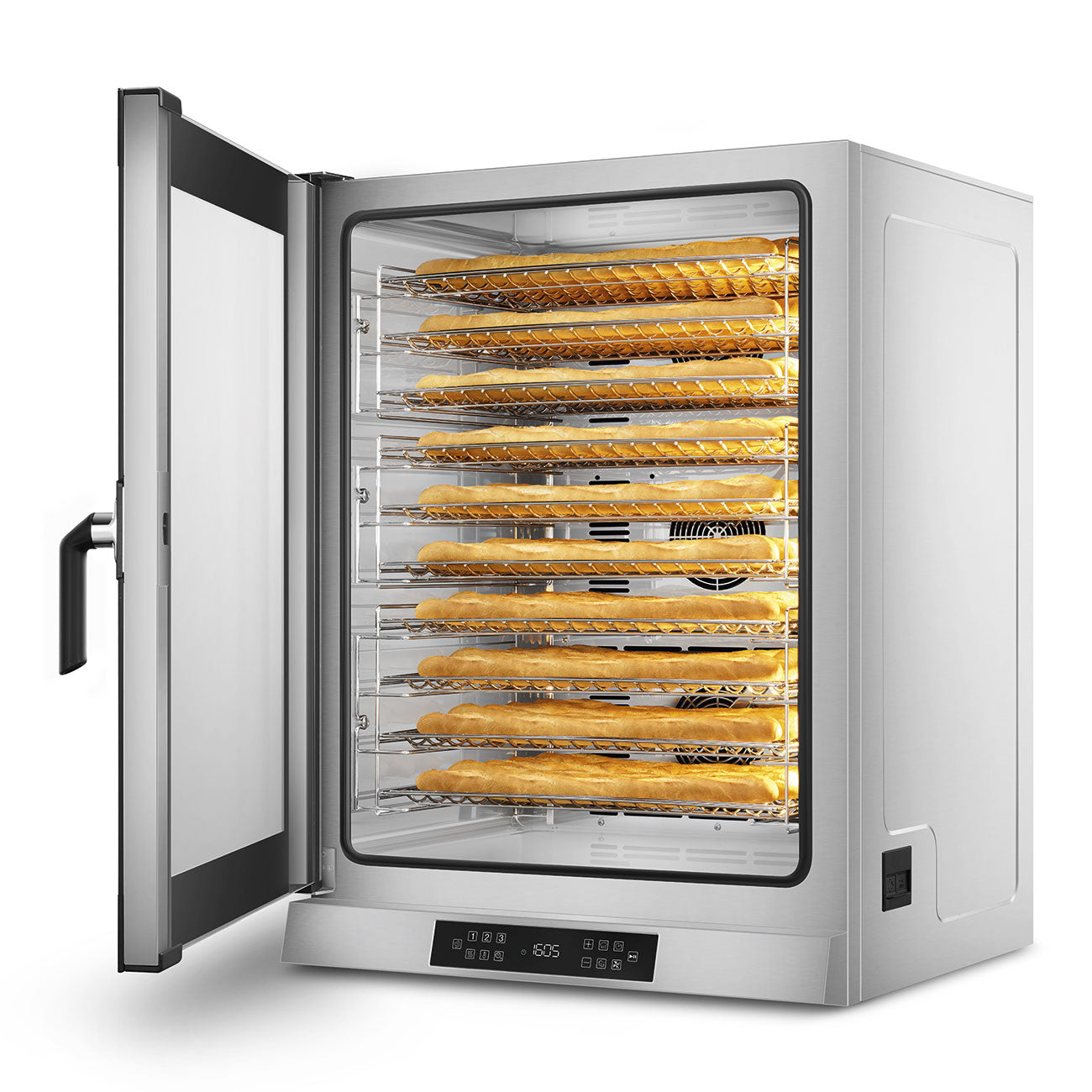

SMEG ALFA1035E1HDS Humidified convection oven - Three phase. Electronic controls - 10 tray

SKU: ALFA1035E1HDS

Warranty: 2 Years Parts & Labour

$8,399.20 $10,499.00
Ex.GST

Description

Flawless Browning with Precise, Repeatable Cooking

Designed to deliver consistent, bakery-quality results, this unit combines precise temperature control, uniform airflow, and repeatable programs so every bake comes out just right. The intuitive LCD touch interface streamlines setup, while humidity management and a two-speed fan protect delicate textures and ensure even coloration across every tray.

  • Intuitive LCD Touch: Simple, precise control of temperature, time, humidity, and fan speed with a clear central display for at-a-glance confirmation.
  • Two-Speed Fan: Tailor airflow for each product. Use gentler ventilation for meringues, profiteroles, and soufflés to preserve lift and structure.
  • Humidity Management: Fine steam pulses promote perfect browning while maintaining internal softness and structure.
  • 3 Cooking Stages: Build multi-step cycles after preheat to optimise each phase from low-temp cook to final finish.
  • Easy-Clean Hinged Glass: Quick access for fast, safe maintenance and effortless inspection.

How It Works

Humidity control uses short spray cycles inside the chamber. Each cycle delivers 2 seconds of water vapour followed by a 15-second pause, with multiple humidity levels available to suit the product.

Fan control offers two speeds to match airflow intensity to product needs for even results without compromising delicate items.

Specifications

General

  • Family: Dishwasher
  • Type: Undercounter traywasher
  • Subfamily: Undercounter glasswasher
  • Basket dimensions: 500 × 500 mm
  • Rinse pump: Yes
  • Wash pump: Standard
  • EAN: 8017709283889
  • Industries: Hotels; Restaurants / Catering; Bakeries / Pastry shops; Food industries; Butcher’s shops; Meat processing industry; QSR
  • Series: Easyline
  • LED colour: Green

Technical Features

  • Trays washing option: Yes
  • Detergent load: Yes, manual
  • Rinse load: Yes, manual
  • Minimum water per cycle: 1.8 L
  • Water consumption per cycle: 3.2 L
  • Water inlet: Cold 8–15 °C
  • Max inlet temperature: 60 °C
  • Max water hardness: 12 °f / 7 °dH
  • Usable load height: 400 mm
  • Depth with open door: 1290 mm
  • Maximum dish diameter: 415 mm

Programs

  • Programs: 6 automatic; 1 fully programmable; self-cleaning programs
  • Options: Extra rinse; Clean water cycle
  • Max baskets per hour: 60
  • Max dishes per hour: 1080

Electrical

  • Default connection: 400 V 3N~ / 12 A / 6.73 kW / 50 Hz
  • Plug: Australian 13 A
  • Tank heating element: 2000 W
  • Boiler heating element: 6000 W
  • Wash pump power: 730 W
  • Total connected load: 6730 W
  • Alternate connections: 230 V~ / 13 A / 3.0 kW / 50 Hz; 230 V~ / 18 A / 4.0 kW / 50 Hz; 230 V~ / 22 A / 5.0 kW / 50 Hz

Interface

  • Display: 8-digit LCD touch
  • On/Off button: Yes
  • Alerts: Rinse-aid missing; Detergent missing; Cycle progress; End-cycle
  • Manual diagnostic: Yes

Construction

  • Tank: Deep-drawn, stainless steel AISI 304
  • Construction: Double wall
  • Tank filter: Stainless steel
  • Back panel: Galvanized
  • Spray systems: Upper and lower washing plus split rinse arms, stainless steel
  • Balanced door: Yes
  • Door gasket: On 3 sides
  • Rack guides: Embossed
  • Hood elevation: Manual
  • Filter: 5-stage filter system
  • Protection class: IPX4
  • Adjustable feet: Yes
  • Max drain height: 600 mm

Capacities

  • Tank capacity: 11 L
  • Boiler capacity: 6 L

Logistics & Dimensions

  • Product dimensions W × D × H: 600 × 675 × 1315 mm
  • Net weight: 88 kg
  • Packed dimensions: 1470 × 660 × 700 mm
  • Gross weight: 98 kg
  • Packaging type: Carton on pallet
  • Packaging breakdown: Paper 4.601 kg; Polystyrene 0.919 kg; Wood 6.500 kg; Plastic 0.056 kg

Equipment & Options

  • Drain pump: Yes
  • Peristaltic detergent dispenser: Yes, electronic control
  • Peristaltic rinse-aid dispenser: Yes, electronic control
  • Chemicals level probe: Optional KITSONLIV
  • Auto daily switch-on: Option, default OFF
  • Wash pump soft start: Yes
  • Stand-by system: Yes
  • Rinse boiler Thermostop: Yes, default
  • Wash tank Thermostop: Yes
  • Cycle counter: Yes
  • Break tank: Yes
  • Partial water renewal with built-in drain pump: Yes

Technical drawing Product sheet
