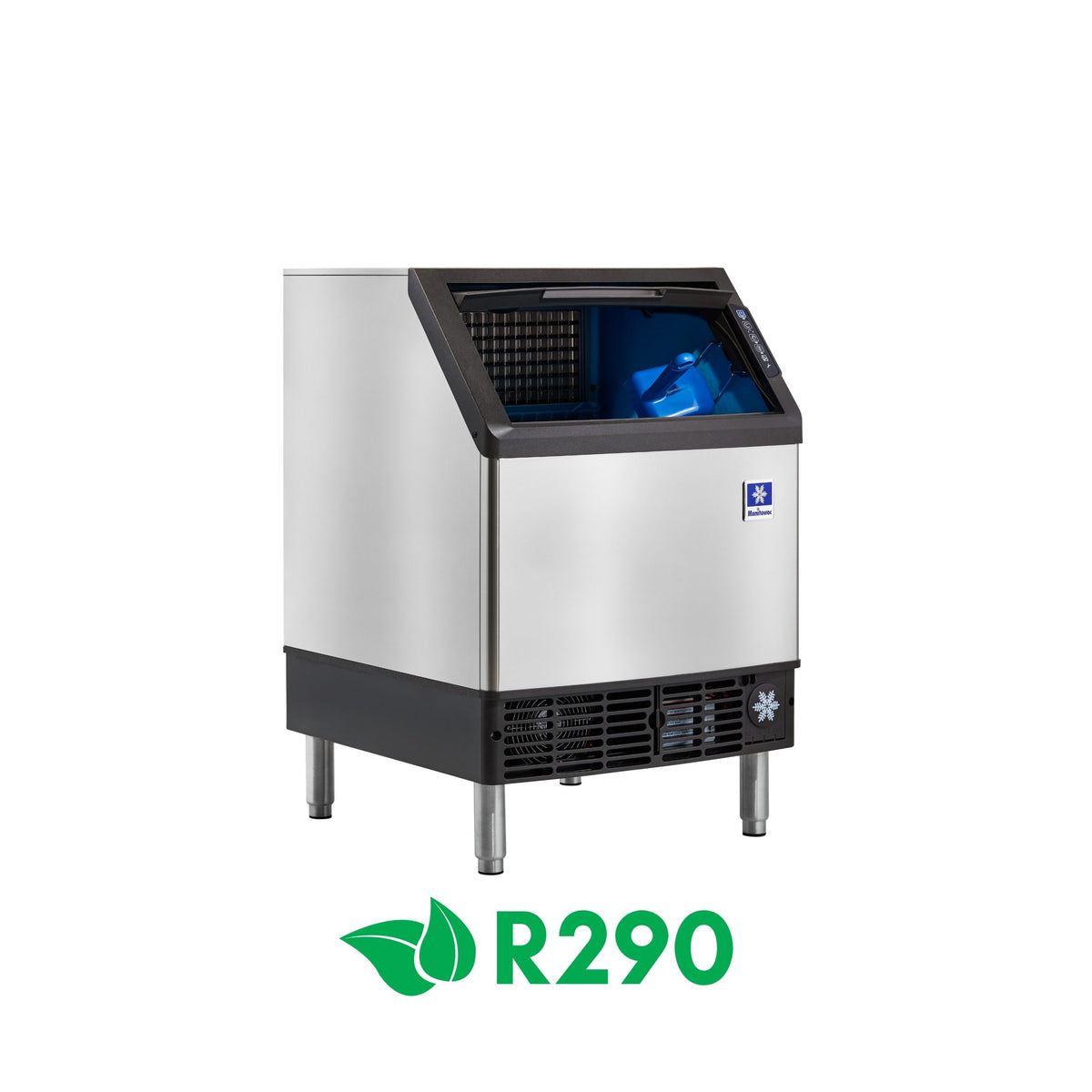

Manitowoc Neo U190A - UDP0190A
Check Delivery:
Manitowoc Neo U190A - UDP0190A
The Manitowoc NEO UDP0190A undercounter ice machine delivers high-output ice production in a compact, undercounter design suited to busy hospitality environments.
Producing up to 82 kg of ice per day, it creates clear dice ice cubes ideal for bars, restaurants, cafés and venues requiring consistent, high-volume ice supply.
Designed for practical installation, the unit features front ventilation for placement under counters or alongside other equipment. A stainless steel cabinet, touchpad control panel, and removable storage bin provide durability and easy access for cleaning and maintenance.
Integrated onboard water filtration supports improved ice clarity and consistent performance.
Using R290 natural refrigerant, the unit supports energy-efficient operation and aligns with current Australian compliance requirements.
With a built-in 40 kg storage bin, the NEO UDP0190A provides reliable, ready-to-use ice for daily service.
GEMS Approved 2026
Key Features
- Produces up to 82 kg/day of ice
- Dice ice cubes for general beverage use
- Undercounter design with front ventilation
- R290 refrigerant for energy-efficient operation
- Touchpad controls for simple operation
- Onboard water filtration for improved ice quality
- Removable storage bin for easy cleaning
- Built-in 40 kg storage bin
Specifications
Model:
UDP0190A
GEMS Registration: GRN-AIM0057
Dimensions (W x D x H):
- 660 mm x 724 mm x 978 mm
Ice Production (24 hours):
- 82 kg (21°C air / 10°C water)
- 58 kg (32°C air / 21°C water)
Bin Capacity:
- 40 kg
Ice Type:
- Dice cube (approx. 22 x 22 x 22 mm)
Refrigerant:
- R290 (natural refrigerant)
Electrical:
- 10 Amp plug
Energy Consumption:
- ~10.3 kWh/day (based on 5.71 kWh/100 lbs and standard production
Operating Conditions:
- Ambient temperature: 10°C to 37.7°C
- Water temperature: 4.4°C to 32.2°C
- Water pressure: 137.9 kPa to 551.1 kPa
Unit Weight (Net):
- 69 kg
FAQs
Is this unit R290?
Yes. The Manitowoc NEO UDP0190A uses R290 natural refrigerant.
Is this unit GEMS registered?
Yes. This model is registered under GEMS as GRN-AIM0057.
What type of ice does it produce?
Dice ice cubes, suitable for general beverage applications.
Where can this unit be installed?
Designed for undercounter installation with front ventilation, allowing placement under benches or next to other equipment.
How easy is it to maintain?
Features a removable storage bin, onboard filtration, and touchpad controls for simple cleaning and servicing.
The detail.
- Brand
- MANITOWOC
- Model
- UDP0190A
- Product Name
- Manitowoc Neo U190A - UDP0190A
- Dimensions (W x D x H)
- 660mm x 724mm x 978mm
- Net Weight
- 69kg
- Machine Type
- Under Counter
- Storage Capacity
- 40 kgs
- Eco-Friendly
- Yes
- Ice Type
- Full Dice
- Ice Production (21°C air & 10°C water)
- 82 kg per day
- Ice Production (32°C air & 21°C water)
- 58 kg per day
- GEMS Registration Number (GRN)
- GRN-AIM0057
