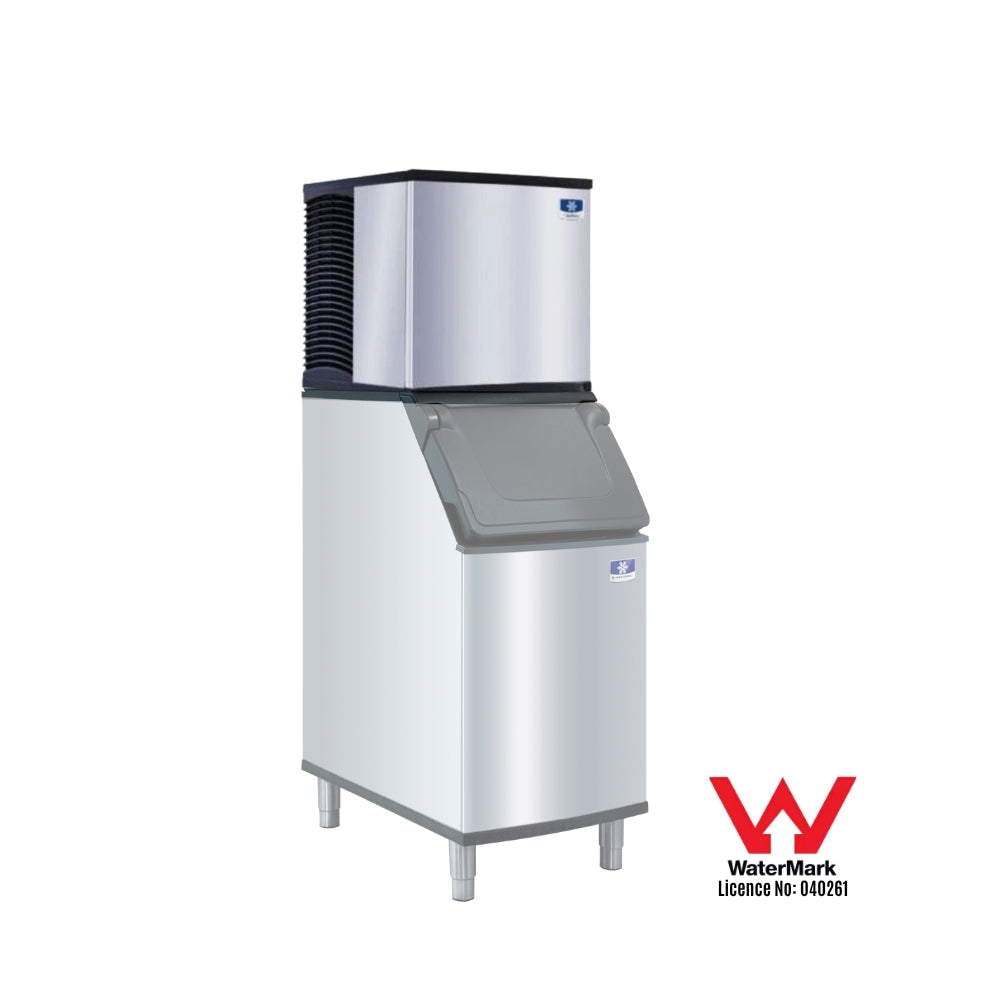

Manitowoc Ice M Series M420 - MYT0420A
The Manitowoc M Series 420 ice cube machine (MDT0420A / MYT0420A) delivers reliable ice production in a compact footprint suited to hospitality environments where space is limited.
Producing up to 176 kg of ice per day, it provides consistent output across full dice and half-dice cube options, making it suitable for cafés, bars and small to medium venues.
Designed for simplicity and ease of maintenance, the unit features easy access to the food zone, removable internal components and a clean, practical layout to support routine servicing.
A stainless steel exterior ensures durability in commercial environments, while internal design features help identify areas requiring cleaning.
The Manitowoc M Series 420 ice cube machine is built for dependable day-to-day performance with straightforward servicing.
GEMS Approved 2026
Key Features
- Produces up to 176 kg/day of ice
- Available in full dice and half-dice cube options
- Compact 22" (559 mm) width for space-saving installation
- Easy access food zone for cleaning and maintenance
- Removable internal components for servicing
- Durable stainless steel construction
Specifications
Model: MDT0420A (Full Dice) / MYT0420A (Half Dice)
GEMS Registration:
- Full Dice: GRN-AIM0044
- Half Dice: GRN-AIM0051
Ice Machine Head Dimensions (W x D x H):
- 559 mm x 623 mm x 546 mm
Ice Production (24 hours):
- 176 kg (21°C air / 10°C water)
- 158 kg (32°C air / 21°C water)
Ice Types:
- Full Dice, Half Dice
Refrigerant:
- R410A
Electrical:
- 10 Amp plug (standard 220–240V/50Hz supply)
Energy Consumption:
- ~22 kWh/day (based on 5.59–5.73 kWh/45.4 kg and standard production
Operating Conditions:
- Ambient temperature: 1.7°C to 43.3°C
- Water temperature: 1.7°C to 32.2°C
- Water pressure: 137.9 kPa to 551.1 kPa
Unit Weight (Net):
- 69 kg (Full Dice) / 70 kg (Half Dice)
FAQs
Is this unit GEMS registered?
Yes. This model is registered under GEMS:
- Full Dice: GRN-AIM0044
- Half Dice: GRN-AIM0051
What type of ice does it produce?
Available in full dice and half-dice cube options depending on configuration.
Where can this unit be installed?
Designed for commercial installations paired with an ice storage bin, suitable for hospitality environments.
How easy is it to maintain?
Features removable components, easy access to the food zone, and a simple internal layout for routine cleaning and servicing.
The detail.
- Brand
- MANITOWOC
- Model
- MYT0420A
- Product Name
- Manitowoc Ice M Series M420 - MYT0420A
- Dimensions (W x D x H)
- 559mm x 622mm x 546mm
- Net Weight
- 70kg
- Machine Type
- Modular
- Ice-Making Equipment
- Head
- Ice Type
- Half Dice
- Ice Production (21°C air & 10°C water)
- 169 kg per day
- Ice Production (32°C air & 21°C water)
- 160 kg per day
- GEMS Registration Number (GRN)
- GRN-AIM0044
