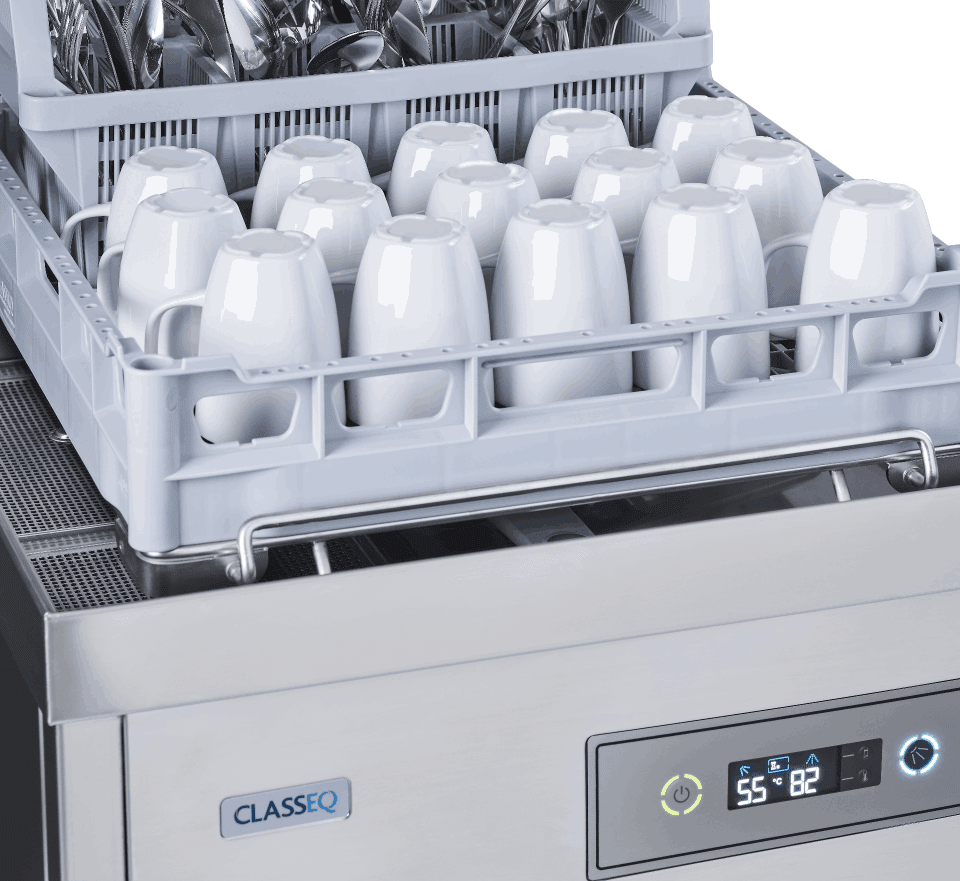

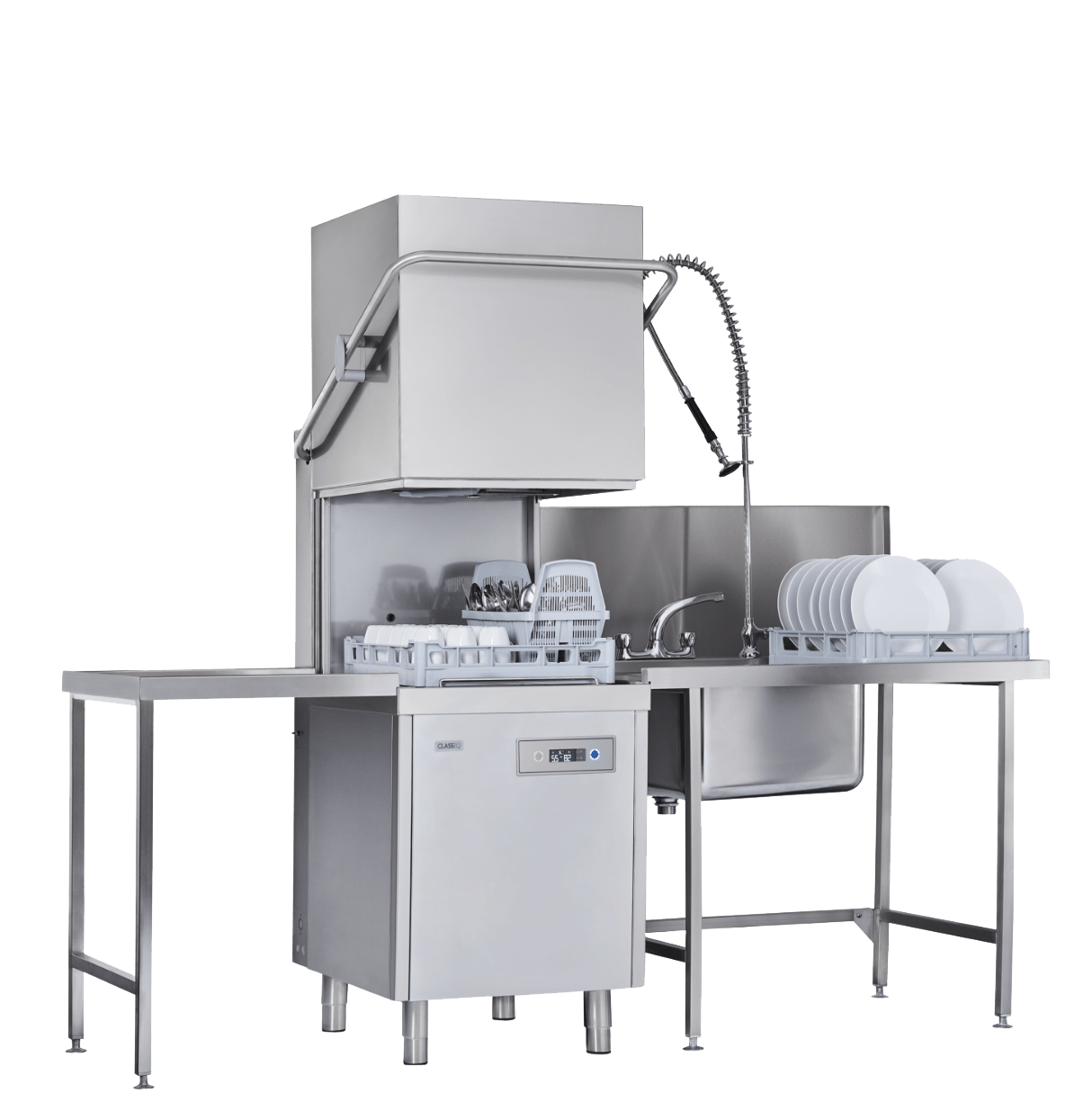

Classeq P500DUO Passthrough Dishwasher
Ex.GST
Classeq P500DUO Passthrough Dishwasher is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
- Work with a team that will take the time to understand your business and ensure that you're getting the right equipment.
- We assign you a dedicated sales rep so that you have a direct contact during the duration of your purchase or project.
- We help you stay on top of things with the occasional check in to make sure your equipment is functioning as it should.
- Got a problem? Talk to your dedicated sales rep about a challenge you may have and we will help you work towards a solution.
Reputable Brands
Fast Freight
Post Sale Support
Description
Description
Technical Specifications
- Dimensions: 635 mm x 712 mm x 1460 mm - 1960 mm
- Programmes: 1.5, 3 & 5 minute cycle
- Dimensions: 635mm x 712mm x 1460mm - 1960mm
- Power: 20 amp 3 phase optional 15 amp single phase
- Width: 635 mm
- Height: 1460 mm
- Depth: 712 mm
- Drain Size: ø 40
- Basket Size: 500 x 500 mm
- Plates per rack: 18.0
- Hydraulic specifications
- Water supply connection: G3/4” (3/4” BSP)
- Amps Required: 20 A
- Total connected load: 6,68 kW Additional Info
- Service: Installation
- Height (Hood Open): 1955-2010 mm
- Height (Hood Closed): 1460-1515 mm
- Maximum Clear Entry Height: 440 mm
- Water Inlet Height Floor Level: 255-310 mm
- Drain Height Floor Level: 0-700 mm
- Theoretical max racks/hour: 40.0
- Number of wash programmes: 3.0
- Duration of wash programmes: 1.5, 3 & 5 minutes
- Minutes Noise Level: < 70 dB
- Net Weight: 130kg
- Wash Pump Size: 0.58 kW
- Wash Pump Capacity: 380 Ltrs/min
- Minimum allowed supply water pressure: 2,0 – 4,0 bar
- Required water flow rate: 11 l/min Electrical specifications
- Operating voltage: 380 – 415V 3N~ / 50Hz
- Backet Size: 500 x 500 mm
- Wash tank heating: 4.05 kW
- Rins Boiler Heating: 6 kW
- Wash tank capacity: 28 Litres
- Wash tank temperature: 85 °C
- Rinse tank capacity: 7.5 Litres
- Rinse tank temperature: 62 °C
- Glasses per hour: 720 plates
- Duration wash cycle: 1.5 / 3 / 5 min
- Wash tank element: 405 kW
- Rinse tank element: 6,0 kW
- Rinse water consumption at 3 bar: 3 l
- Rinse booster pump: included
- Operating noise level: 70 dB
- Weight fully loaded: 115 kg
Spec Sheets & Downloads
- Spec Sheets
- CAD / BIM Files
- User Manual
- Brochure
- C400 SPECIFICATIONS.PDF
- C400 SPECIFICATIONS.DWG
- C400 SPECIFICATIONS.DXF
- CLASSEQ_C400.RFA
- C500 SPECIFICATIONS.PDF
- C500 SPECIFICATIONS.DWG
- C500 SPECIFICATIONS.DXF
- CLASSEQ_C500.RFA
- C500DD SPECIFICATIONS.PDF
- C500DD SPECIFICATIONS.DWG
- C500DD SPECIFICATIONS.DXF
- CLASSEQ_C500DD.RFA
- P500 SPECIFICATIONS.PDF
- P500 SPECIFICATIONS.DWG
- P500 SPECIFICATIONS.DXF
- CP500 SPECIFICATIONS.PDF
- CP500 SPECIFICATIONS.DWG
- CP500 SPECIFICATIONS.DXF
- CP500 SPECIFICATIONS.RFA
- CP500SR SPECIFICATIONS.DWG
- CP500SR SPECIFICATIONS.DXF
- CP500SR SPECIFICATIONS.PDF
- CP500SR SPECIFICATIONS.RFA
