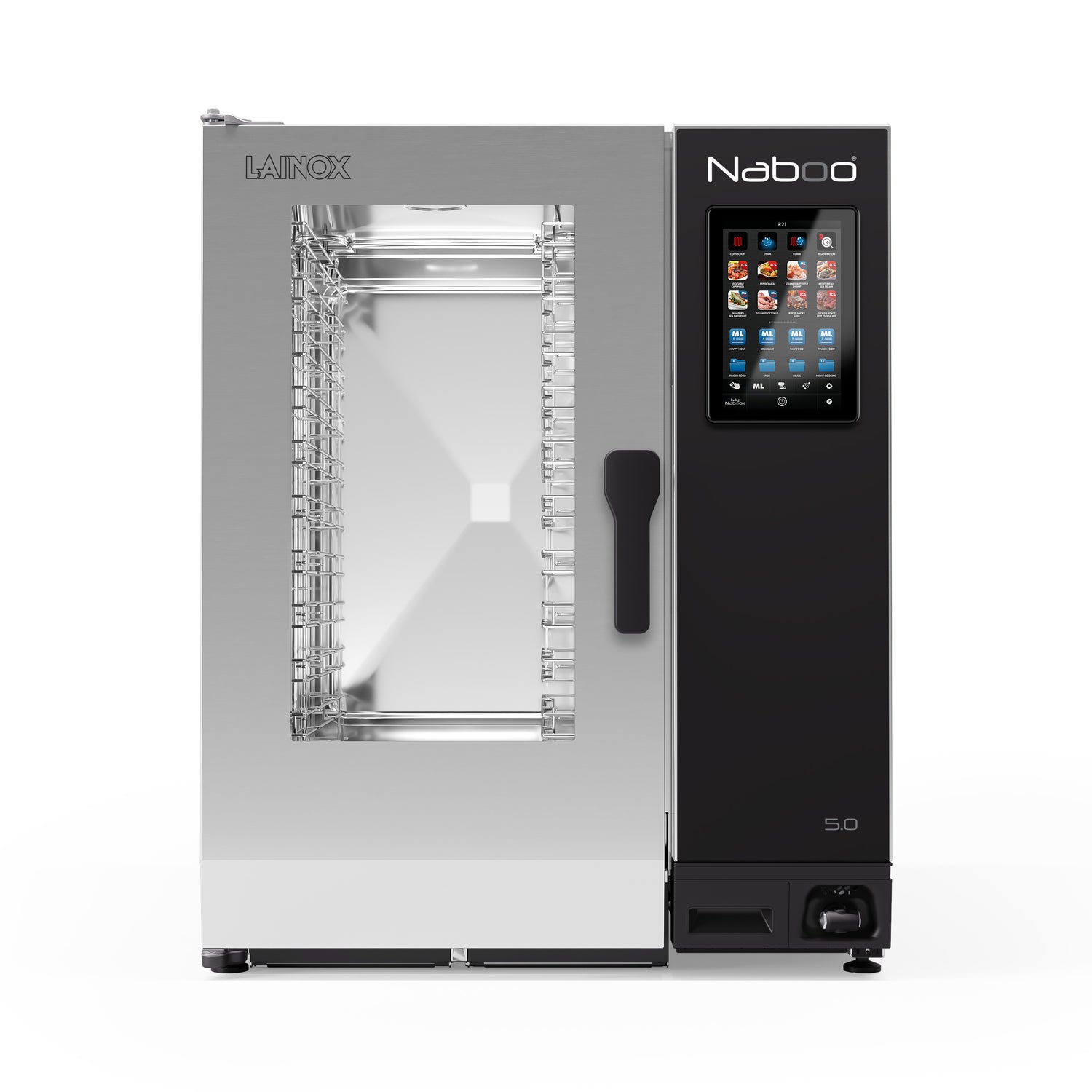

LAINOX 10 x1/1GN Electric Direct Steam Combi Oven with Touch Screen Controls

Elevate your commercial kitchen's efficiency and culinary precision with the LAINOX NAE101B 10 x 1/1 GN Electric Direct Steam Combi Oven. Engineered for demanding hospitality environments, this unit delivers consistent, high-quality results while optimizing operational workflow.

Key Features

• High Capacity Cooking: Accommodates 10 x 1/1 GN trays with direct steam injection for versatile cooking.
• Advanced Control: Configurable 10-inch electronic touch screen control panel provides intuitive and precise operation.
• Intelligent Cooking Functions: Features Multi Level and Just in Time Cooking for synchronized and optimized meal preparation.
• Seamless Connectivity: Integrated Wi-Fi connectivity and USB port allow for easy data transfer and software updates.
• Cloud Management: Access to the NABOOK Recipe and Kitchen Management Cloud for streamlined recipe creation and kitchen oversight.
• Remote Monitoring: Remote HACCP and Energy Monitor capabilities ensure compliance and efficient resource management.
• Energy Efficiency: Lainox Intelligent Energy System significantly reduces energy consumption without compromising performance.
• Superior Hygiene & Durability: Perfectly smooth, watertight cooking chamber facilitates easy cleaning and ensures longevity.
• Optimized Airflow: Two-speed fan ensures even heat distribution and consistent cooking results.
• Enhanced Safety: Door equipped with double tempered glass for improved insulation and operator safety.
• Automated Cleaning: In-built Smart Chemical Control and Vapour Cleaning System offers multiple cleaning modes for hassle-free maintenance.
• Precision Cooking Tools: Complete with a core temperature probe and internal stainless steel runners for GN or 600 x 400 trays.
• Water Quality Assurance: Includes a 5-micron water filter to protect the unit and ensure superior steam quality.
• Wide Temperature Range: Operates from 30°C to 300°C, with preheating capability up to 320°C for rapid readiness.

Product Specifications

• Brand: LAINOX
• Model: NAE101B
• Origin: Italy
• Dimensions (W x D x H): 852mm x 797mm x 1055mm
• Weight: 120kg
• Capacity: 10 x 1/1 GN
• Power Supply: 3 Phase, 18.7kW
• Warranty: 24 Months Parts, 24 Months Labour
• Optional Accessories: Boiler option available (code OB101E)
• Downloads: View Spec Sheet
