$859.80 Off

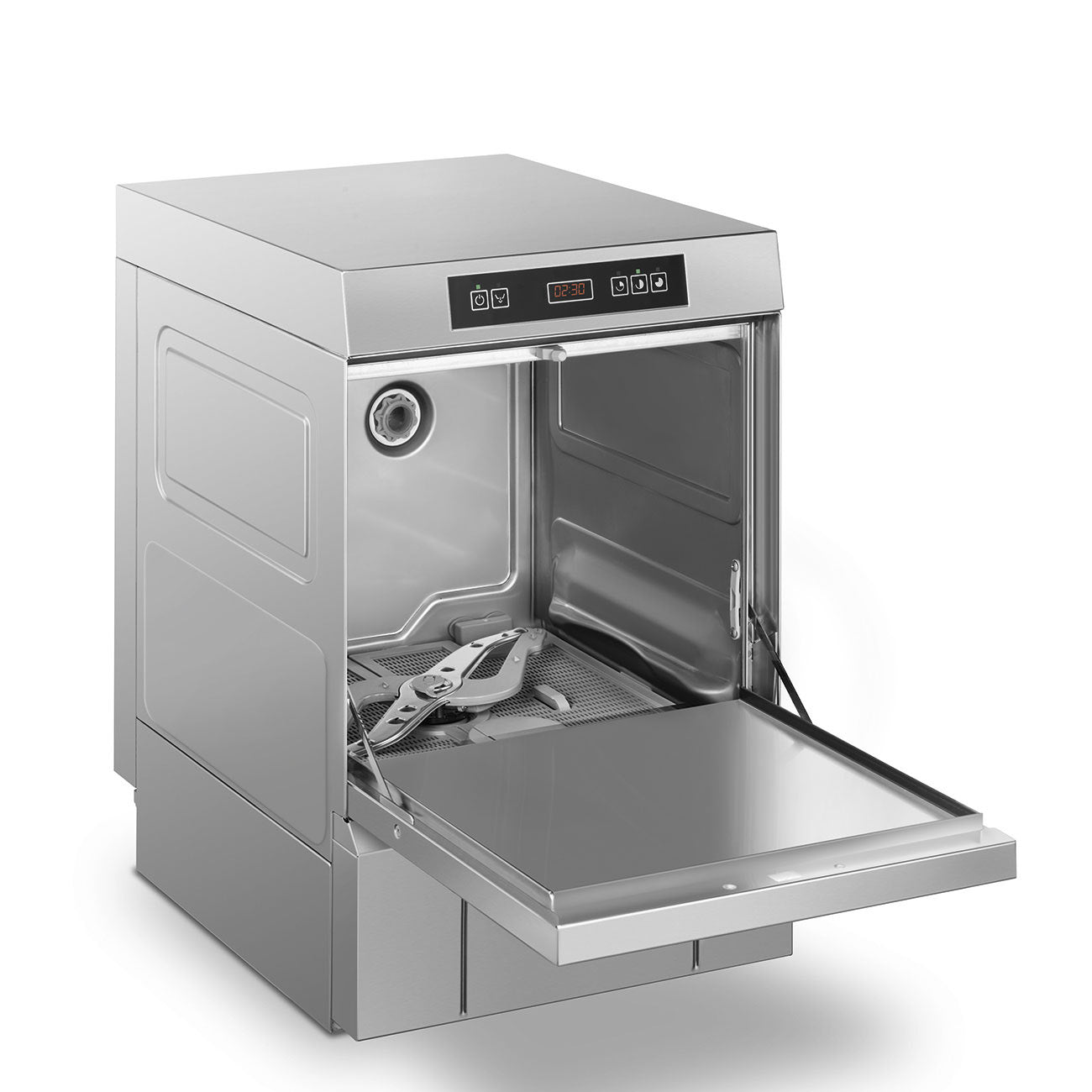

SMEG SPG405MAU ecoLINE underbench glasswasher - 15 Amp - 400x400 basket Electronic control- 3 cycles

SKU: SPG405MAU

Warranty: 2 Years Parts & Labour

$3,439.20 $4,299.00
Ex.GST

Description

Ecoline Undercounter Glasswasher — Compact, Quiet, and Impeccably Hygienic

Deliver crystal-clear glassware, crockery, and cutlery in a compact footprint built for bars, cafés, hotels, and catering. The HTR (High Temperature Rinse) system with an atmospheric boiler and Thermostop guarantees a consistent sanitising rinse, while soft-start protects delicate stems. A moulded tank with guided racks optimises water flow, the patented multi-stage filtration keeps wash water cleaner for longer, and partial double-skin construction improves thermal efficiency and lowers noise (LpA 52.6 dBA).

  • HTR System: Constant-temperature, constant-pressure rinse for uniform, effective cleaning and fast drying.
  • Soft-start system: Gentle ramp-up of pump pressure to protect fragile glassware without sacrificing cleaning power.
  • Drain pump with partial water exchange: Automatically removes the dirtiest water each cycle for superior hygiene.
  • Patented 4-stage filtration: Progressive filters remove coarse and fine debris and protect the wash/drain pumps.
  • Partial double skin: Thermal and acoustic insulation for a cooler exterior and quieter workspace.
  • Moulded tank & basket guides: Smooth, edge-free design improves water circulation, cleaning performance, and daily clean-down.

Specifications

General

  • Family: Dishwasher
  • Type: Undercounter glasswasher
  • Suitable for: Crockery, glasses, cutlery
  • Subfamily: Undercounter
  • Basket dimensions: 400 × 400 mm
  • Rinse pump: HTR system
  • Wash pump: Standard
  • Series: Ecoline
  • EAN: 8017709329563
  • Industries: Bars/Cafés/Bistros/Wine bars/Pubs; Hotels; Restaurants/Catering; Bakeries/Pastry; Commercial food services

Programs & Performance

  • Programs: 3 automatic; Self-cleaning programs
  • Program table: Electronic Ecoline glasswasher 400
  • Options: Extra rinse; Clean water cycle
  • Max baskets/hour: 40
  • Max dishes/hour: 320
  • Max glasses/hour: 1,000
  • Noise: LpA 52.6 dBA

Water & Temperatures

  • Wash temperature: 60 °C
  • Rinse temperature: 83 °C
  • Typical water per cycle: 2.3 L
  • Minimum water per cycle: 3.0 L
  • Water inlet temperature: Cold 8 °C (max inlet 60 °C)
  • Water inlet pressure: 100–1000 kPa
  • Max water hardness: 12 °f / 7 °dH
  • Usable load height: 309 mm
  • Depth with door open: 890 mm
  • Drain max height: 600 mm

Electrical

  • Power connection: 230 V~ / 14 A / 3.1 kW / 50 Hz
  • Plug: Australia (I)
  • Tank heating element: 1,400 W
  • Boiler heating element: 2,800 W
  • Wash pump power: 290 W
  • Total connected load (listed): 3,100 W
  • Electrical option: 220 V~ / 14 A / 3.1 kW / 50 Hz

Interface

  • Panel control: Eco electronic
  • Buttons: 5 (includes On/Off)
  • Manual diagnostic: Yes

Construction

  • Tank: Deep-drawn, moulded bottom and guides
  • Body: Partial double wall
  • Tank material: AISI 304 stainless steel
  • Tank filter: Plastic
  • Back panel: Galvanized
  • Upper system: Stainless wash arm + split rinse arm
  • Lower system: Wash arm + combined rinse arms (stainless & plastic)
  • Door gasket: Upper side only
  • Rack guides: Embossed
  • Filtration: 4-stage filter system
  • Tank capacity: 7 L
  • Boiler: Atmospheric; 4 L
  • Protection class: IPX4
  • Adjustable feet: Yes

Dimensions & Logistics

  • Product (W × D × H): 440 × 555 × 695 mm
  • Net weight: 42.0 kg
  • Packed (W × D × H): 510 × 630 × 860 mm
  • Gross weight: 48.0 kg
  • Packaging: Carton on pallet — Paper 2.167 kg; Polystyrene 0.001 kg; Wood 6.220 kg; Plastic 0.144 kg

Equipment & Systems

  • Drain pump: Yes (partial water renewal)
  • Peristaltic detergent dispenser: Yes, electronic control
  • Peristaltic rinse-aid dispenser: Yes, electronic control
  • Chemicals dosing unit: g/L (default)
  • Auto daily switch-on: Option (default OFF)
  • Stand-by system: Yes
  • Rinse boiler Thermostop: Yes (default)
  • Wash tank Thermostop: Yes
  • Cycle counter: Yes
  • Break tank: Yes
  • Peristaltic detergent doser: Yes, manual (listed)

Technical drawing Technical drawing 2 Product sheet 3D file
